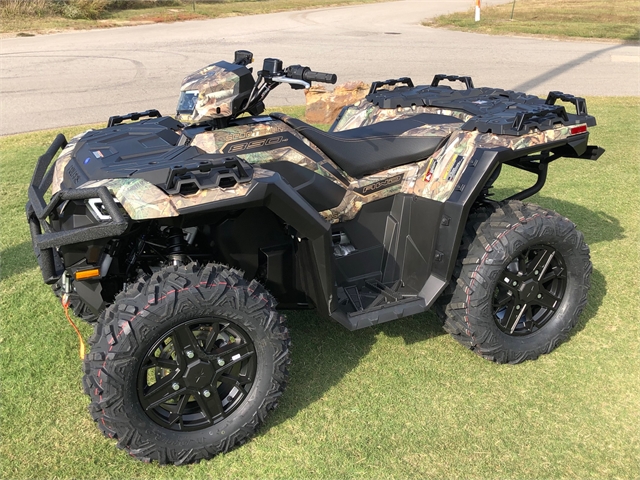

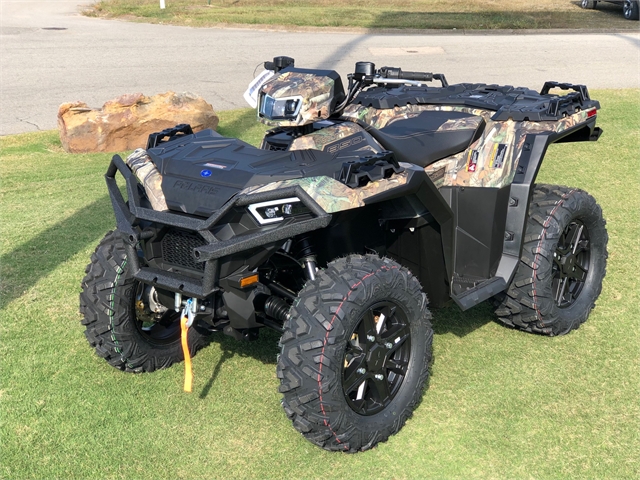

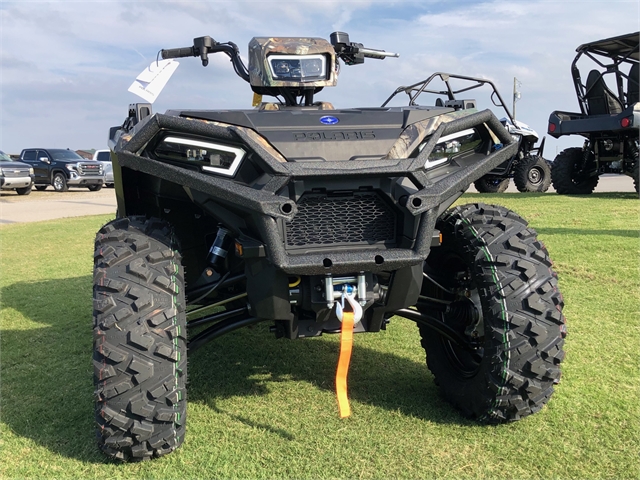

2024 Polaris Sportsman 850 Ultimate Trail

Stock #5RB154043
MSRP: $13,599 USD
Discount: $500
Your Price: $13,099 USD

150 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2024 Polaris Sportsman 850 Ultimate Trail . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2024 Polaris Sportsman 850 Ultimate Trail
  • Model Number:
    A24SXZ85AP
  • Stock Number:
    5RB154043
  • Location:
    Sunrise Yamaha Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

AUDIO & COMMUNICATION

  • Bluetooth® Audio:
    Yes
  • Mobile App Instrumentation:
    Yes

BRAKES

  • Front Brake Type:
    Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

DRIVE LINE

  • Differential Lock Location:
    Rear
  • Driveline Brand:
    On-Demand™
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Rear
  • Number Of Driveline Modes:
    2

ENGINE

  • Bore (in):
    3.43
  • Bore (mm):
    87
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    11
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    850
  • Displacement (ci):
    51.9
  • Engine Brand Name:
    ProStar™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Parallel Twin
  • Fuel Injector Size (mm):
    42
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Horsepower (bhp):
    78
  • Horsepower (kW):
    57.5
  • Starter:
    Electric
  • Stroke (in):
    2.81
  • Stroke (mm):
    71.5
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    4
  • Valves:
    8

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Composite
  • Floor Board Location:
    Driver
  • Frame:
    Steel

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    37
  • Seat Height (mm):
    940
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Capacity (kgs):
    110
  • Capacity (kgs):
    55
  • Capacity (lbs):
    120
  • Capacity (lbs):
    240
  • Number Of Cupholders:
    1
  • Rack Rails Location:
    Rear

SUSPENSION

  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    9
  • Front Travel (mm):
    229
  • Number Rear Shock Absorbers:
    2
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    10.3
  • Rear Travel (mm):
    260

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    392
  • Dry Weight (lbs):
    864
  • Engine Displacement to Weight (cc):
    0.98
  • Fuel Capacity (gal):
    5.3
  • Fuel Capacity (l):
    19.9
  • Ground Clearance (in):
    12
  • Ground Clearance (mm):
    305
  • Height (in):
    50.8
  • Height (mm):
    1289
  • Length (ft):
    6.94
  • Length (ft/ft):
    6
  • Length (ft/in):
    11.3
  • Length (in):
    83.3
  • Length (mm):
    2114
  • Payload Capacity (kgs):
    261
  • Payload Capacity (lbs):
    575
  • Towing Capacity (kgs):
    680
  • Towing Capacity (lbs):
    1500
  • Wheelbase (in):
    53
  • Wheelbase (mm):
    1346
  • Width (in):
    47.6
  • Width (mm):
    1209

TOWING & HAULING

  • Rear Hitch Type:
    Receiver
  • Size (cm):
    3.2
  • Size (in):
    1.25
  • Weight (kgs):
    1587.6
  • Weight (lbs):
    3500
  • Winch Brand Name:
    Polaris

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    Polaris Variable Transmission (PVT)
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Duro Power Grip
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Duro Power Grip
  • Rear Tire Diameter (in):
    27
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Duro
  • Wheels Composition:
    Aluminum
