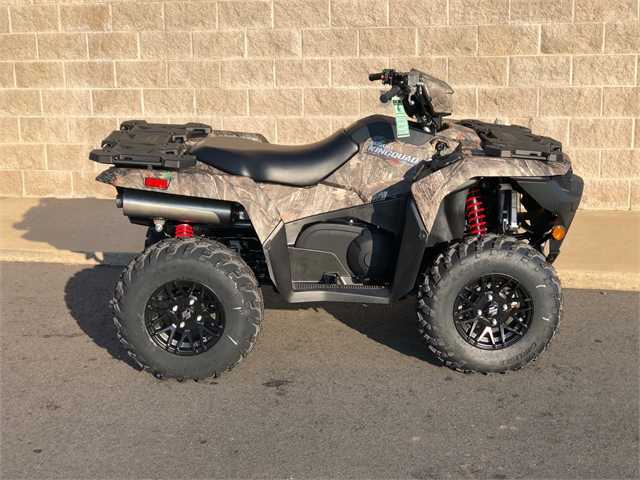

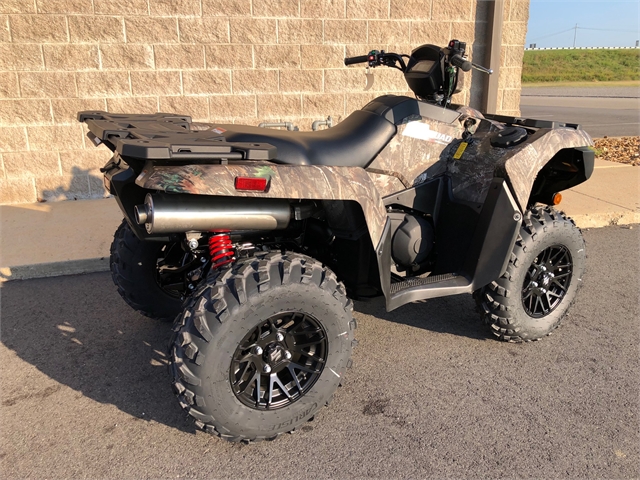

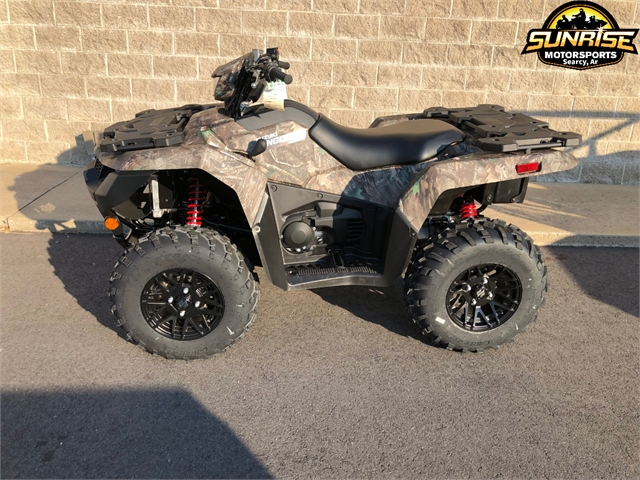

2023 Suzuki KingQuad 750AXi Power Steering SE Camo

Stock #4P7101248
MSRP: $11,249 USD
Discount: $1,950
Your Price: $9,299 USD

647 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Suzuki KingQuad 750 AXi Power Steering SE Camo . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2023 Suzuki KingQuad 750AXi Power Steering SE Camo
  • Model Number:
    LT-A750XPZCM3
  • Stock Number:
    4P7101248
  • Location:
    Sunrise Yamaha Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Engine Braking Brand Name:
    Engine Braking System
  • Front Brake Diameter (in):
    7.9
  • Front Brake Diameter (mm):
    200
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Sealed Oil Bath Multi-Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    3

ENGINE

  • Bore (in):
    4.1
  • Bore (mm):
    104
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    9.9
  • Cooling:
    Liquid
  • Cylinders:
    1
  • Displacement (cc):
    722
  • Displacement (ci):
    44.1
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    3.35
  • Stroke (mm):
    85
  • Valve Configuration:
    DOHC
  • Valves Per Cylinder:
    4
  • Valves:
    4

EXTERIOR

  • A-Arm Skid Plate (Front):
    Yes
  • A-Arm Skid Plate (Rear):
    Yes
  • Bash Plate (Front):
    Yes
  • Bash Plate (Rear):
    Yes
  • Body Material:
    Plastic
  • Floor Board Location:
    Driver
  • Frame:
    Steel
  • Full Length Skid Plate:
    Yes
  • Radiator Guard:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    Halogen

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    36.2
  • Seat Height (mm):
    920
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Power

STORAGE

  • Fender Storage Location:
    Front

SUSPENSION

  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Type:
    Independent Double A-Arm
  • Front Travel (in):
    6.7
  • Front Travel (mm):
    170.2
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Type:
    Independent Double A-Arm
  • Rear Travel (in):
    7.7
  • Rear Travel (mm):
    195.6

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    4.6
  • Fuel Capacity (l):
    17.5
  • Ground Clearance (in):
    10.2
  • Ground Clearance (mm):
    260
  • Height (in):
    50.6
  • Height (mm):
    1285
  • Length (ft):
    7.05
  • Length (ft/ft):
    7
  • Length (ft/in):
    0.6
  • Length (in):
    84.6
  • Length (mm):
    2150
  • Storage Capacity (gal):
    0.6
  • Storage Capacity (l):
    2.8
  • Towing Capacity (kgs):
    599.7
  • Towing Capacity (lbs):
    1322
  • Wet Weight (kg):
    327
  • Wet Weight (lbs):
    721
  • Wheelbase (in):
    50.6
  • Wheelbase (mm):
    1285
  • Width (in):
    47.8
  • Width (mm):
    1215

TOWING & HAULING

  • Rear Hitch Type:
    Receiver

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Brand:
    Quadmatic™
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Carlisle AT 25 X 8-12
  • Front Tire Diameter (in):
    25
  • Front Tire Width:
    8
  • Front Wheel Diameter:
    12
  • Rear Tire (Full Spec):
    Carlisle AT 25 X 10-12
  • Rear Tire Diameter (in):
    25
  • Rear Tire Width:
    10
  • Rear Wheel Diameter:
    12
  • Tire Brand:
    Carlisle
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Aluminum
