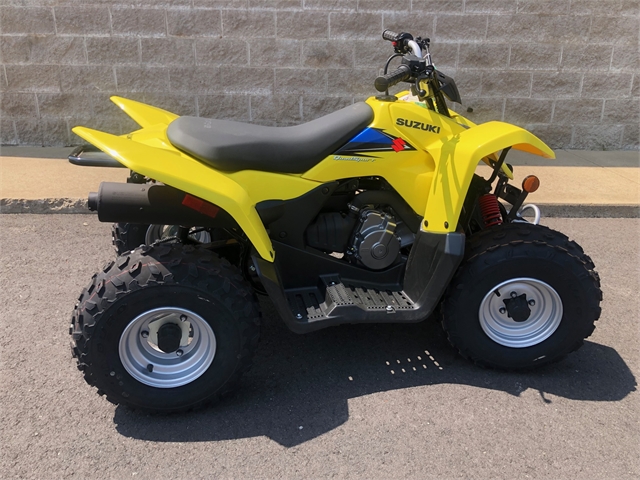

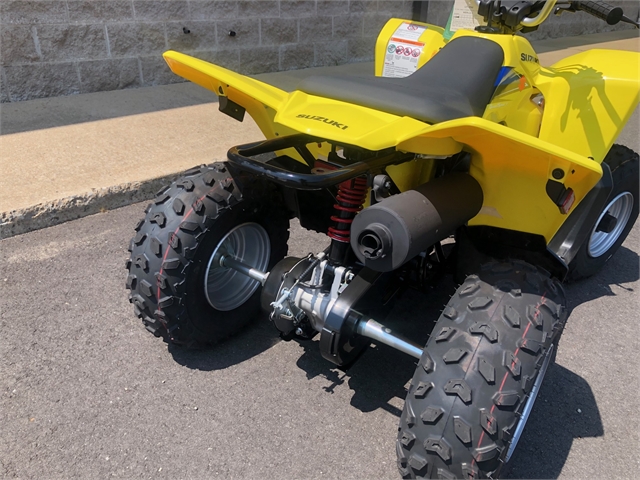

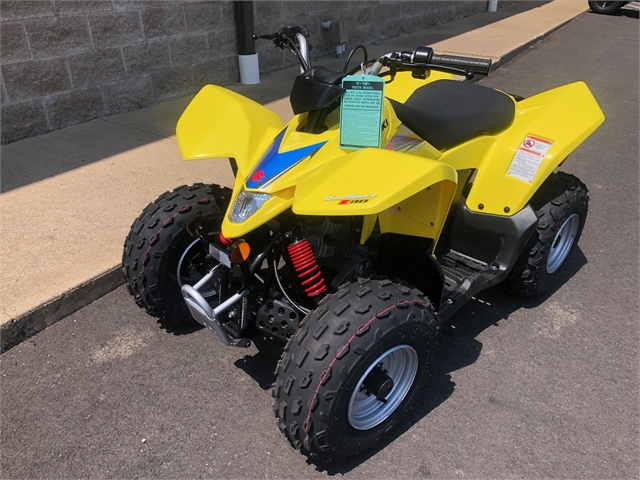

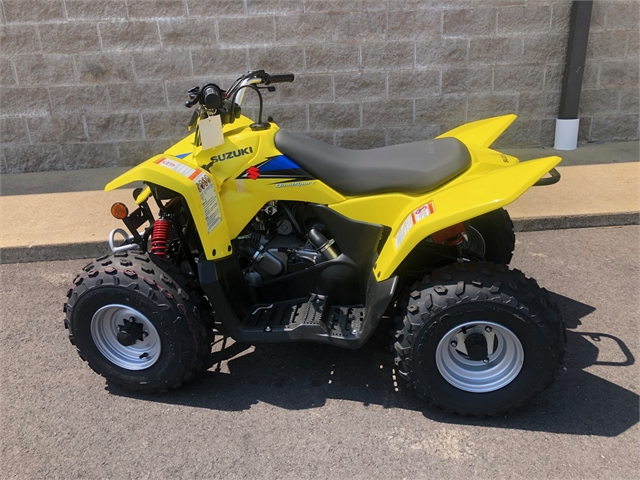

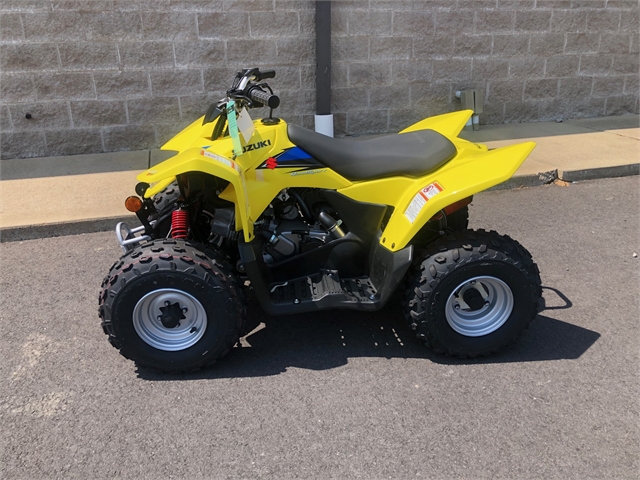

2023 Suzuki QuadSport Z90


36 people have recently viewed it.
Check Availability Hi, my name is and I'm interested in this 2023 Suzuki QuadSport Z90 . I'm in the area and you can reach me at or on my phone at .
  • Status:
    New
  • Vehicle:
    2023 Suzuki QuadSport Z90
  • Model Number:
    LT-Z90M3
  • Location:
    Sunrise Yamaha Motorsports
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Type:
    Dual Drum
  • Rear Brake Type:
    Drum

DRIVE LINE

  • Driveline Type:
    4X2
  • Number Of Driveline Modes:
    1
  • Rear Solid Axle:
    Yes

ENGINE

  • Bore (in):
    1.79
  • Bore (mm):
    45.5
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Carburetor
  • Carburetor Size (mm):
    16
  • Carburetor:
    Yes
  • Compression Ratio:
    9.5
  • Cooling:
    Air
  • Cylinders:
    1
  • Displacement (cc):
    90
  • Displacement (ci):
    5.5
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    Single-Cylinder
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Number Of Carburetors:
    1
  • Speed Governor:
    Yes
  • Starter:
    Electric / Pull
  • Stroke (in):
    2.17
  • Stroke (mm):
    55.2
  • Valve Configuration:
    SOHC

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Floor Board Location:
    Driver
  • Frame:
    Steel

SEATS

  • Number Of Seats:
    1
  • Seat Height (in):
    25.6
  • Seat Height (mm):
    650
  • Seat Location:
    Driver
  • Seat Material:
    Vinyl
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar
  • Steering Type:
    Manual

SUSPENSION

  • Front Suspension Type:
    Independent A-Arm
  • Number Rear Shock Absorbers:
    1
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Swing Arm

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    1.6
  • Fuel Capacity (l):
    6
  • Ground Clearance (in):
    5.9
  • Ground Clearance (mm):
    150
  • Height (in):
    36
  • Height (mm):
    915
  • Length (ft):
    4.94
  • Length (ft/ft):
    4
  • Length (ft/in):
    11.3
  • Length (in):
    59.3
  • Length (mm):
    1505
  • Wet Weight (kg):
    127
  • Wet Weight (lbs):
    280
  • Wheelbase (in):
    39.6
  • Wheelbase (mm):
    1005
  • Width (in):
    34.4
  • Width (mm):
    875

TRANSMISSION

  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Rear Wheel):
    Chain
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® AT 19 X 7-8
  • Front Tire Diameter (in):
    19
  • Front Tire Width:
    7
  • Front Wheel Diameter:
    8
  • Rear Tire (Full Spec):
    Dunlop® AT 19 X 7-8
  • Rear Tire Diameter (in):
    19
  • Rear Tire Width:
    7
  • Rear Wheel Diameter:
    8
  • Tire Brand:
    Dunlop®
  • Tube / Tubeless:
    Tubeless
  • Wheels Composition:
    Steel
